Description
Bray Straight White Dual Fuel Heated Towel Rail
Our Bray straight white dual fuel heated towel rails are manufactured to be the highest quality bathroom radiators available online today, whilst offering unbeatable value for money.
The overall quality is eye-catching when compared to cheaper alternatives to this towel rail. Equipped with thick cross bars and steel at a thickness of 1.5mm. This makes the radiator around 50% thicker than the average towel warmer, maximising heat emission.
The result of this is a more substantial towel rail, preventing defects such as rusting and pinhole leaks.
We design our bathroom radiators with quality, aesthetics and efficiency in mind. With a Bray heated towel rail you have more surface area and a longer warranty.
Superior Quality. Higher Outputs.
By increasing the surface area, the heat emission potential is maximised. Which in turn, produces a higher BTU output to keeps your bathroom warm. We design our bathroom radiators with quality, aesthetics and efficiency in mind.
SolAire Bray white towel rails are ASTMB117 salt tested for 250 hours. This strict quality testing ensures the long lifespan of the radiator. Then backed by a 5 year guarantee, you have total peace of mind.
Dual Fuel – Year Round Heat.
Dual Fuel towel rails can be heated from the central heating system or an electric element. Therefore you can still use the towel rail even when the central heating system is off. This is ideal if you want to dry towels in the summer.
- Dual Fuel – Electric Mode
The Celsius electric element offers quality and efficiency. It is splash proof (IP67 rated), suitable for all bathroom zones. In the event of a temperature change, the element adapts to keep a smooth surface temperature across the towel rail. This self-regulating effect avoids overheating, while ensuring efficient power usage and low running costs. To use in electric mode, you simply tighten one of the dual fuel valves until it is closed and switch the element on.
- Dual Fuel Valves – Central Heating Mode
With the electric element turned off, your dual fuel towel rail becomes like any other radiator in the house. When the central heating is switched on, the towel rail warms up.

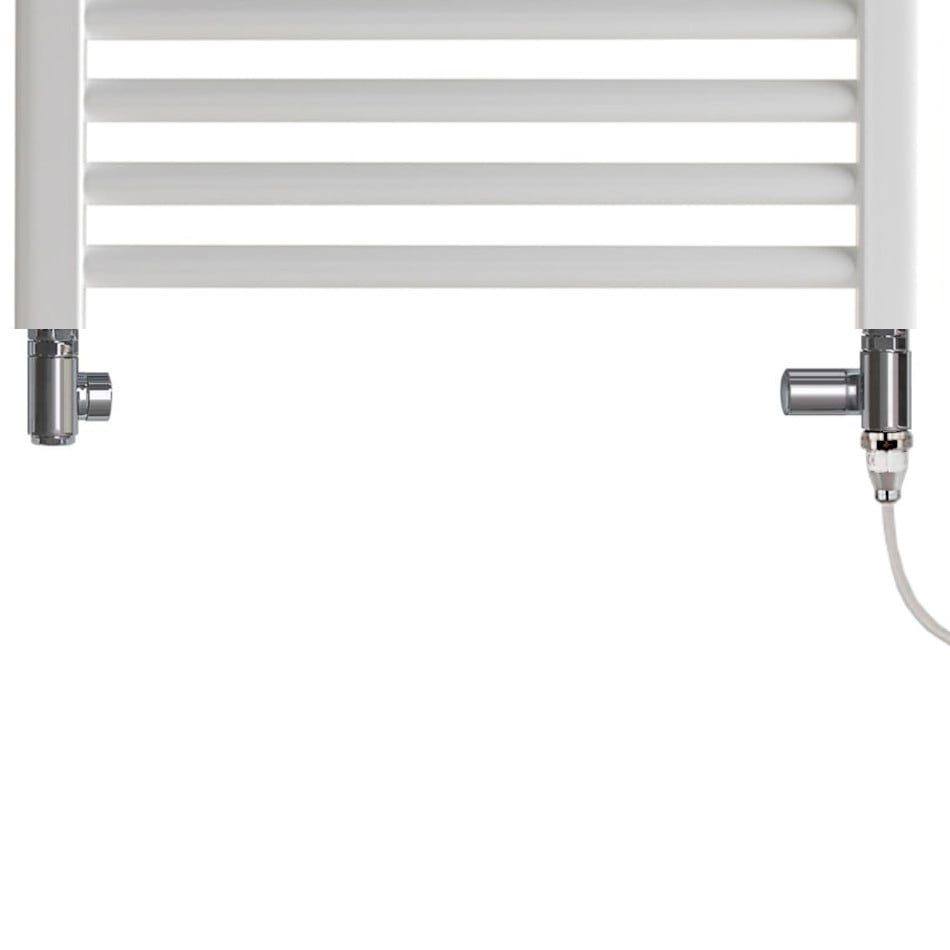

Dual Fuel Assembly
Our angled dual fuel radiator valves are a study and well made, composed of solid brass with chrome plating. The valves are screwed into the bottom of the towel rail’s vertical pipes. The electric element is then screwed into the bottom of one of the dual fuel valves. The opposing valve has a blank plug connected to the remaining socket. The central heating pipes connect at a 90 degree angle to the towel rail. So they can come straight out of the inside of the wall, or run horizontally along the wall to connect to the valves.
Alternative Dual Fuel Valve Option
If you need the central heating pipes to connect to the towel rail vertically, by coming up out of the floor, we can supply our alternative dual fuel valve kit on request. This consists of two straight radiator valves and two t-pieces. The t-pieces are inserted into the towel rail first, and the valves attach the their right angled socket, allowing the dual fuel towel rail to accept pipes from below.
Easy Wall Mount. Adjustable Brackets.
The quality of the Bray makes it heavier than normal. As a result we have to supply the best fixing system available.
The Bray’s brackets have internal metal threads for a more secure fitting against the wall. The brackets also provide an adjustable wall projection. This allows you change the wall projection between 90-110mm, making it ideal if the wall is uneven e.g a half-tiled wall. Cheaper towel rails provide less secure brackets which are flimsy at best.
The top of the Bray towel rail is well-finished and tidy. One side is flat without obstruction, whilst the other side houses the chrome air vent. There are no nasty nickel plated vents and blank plugs on display.
Product Specifications – (White)
| Model | Dimensions (mm) H x W x D | TUBE Ø (mm) | Bar Config | Pipe Centres | CP Element Wattage | Thermostatic Element Wattage | Output Δ T60°C BTU’s White |
|---|---|---|---|---|---|---|---|
| 480 | 800 x 400 x 93-113 | 25 + 30 x 40 D Section | 3-5-6 | 355 | 150 | 300 | 1491 |
| 580 | 800 x 500 x 93-113 | 25 + 30 x 40 D Section | 3-5-6 | 455 | 150 | 300 | 1811 |
| 510 | 1000 x 500 x 93-113 | 25 + 30 x 40 D Section | 4-5-9 | 455 | 200 | 300 | 1923 |
| 512 | 1200 x 500 x 93-113 | 25 + 30 x 40 D Section | 4-5-13 | 455 | 300 | 600 | 2859 |
| 515 | 1500 x 500 x 93-113 | 25 + 30 x 40 D Section | 4-5-7-12 | 455 | 300 | 600 | 3536 |
Additional Sizes (White)
| Model | Dimensions (mm) H x W x D | TUBE Ø (mm) | Bar Config | Pipe Centres | CP Element Wattage | Thermostatic Element Wattage | Output Δ T60°C BTU’s White |
|---|---|---|---|---|---|---|---|
| 380 | 800 x 300 x 93-113 | 25 + 30 x 40 D Section | 3-5-6 | 255 | 150 | 300 | 1169 |
| 680 | 800 x 600 x 93-113 | 25 + 30 x 40 D Section | 3-5-6 | 555 | 200 | 300 | 2135 |
| 612 | 1200 x 600 x 93-113 | 25 + 30 x 40 D Section | 4-5-13 | 555 | 300 | 600 | 3377 |
| 615 | 1500 x 600 x 93-113 | 25 + 30 x 40 D Section | 4-5-7-12 | 555 | 400 | 600 | 4192 |
| 418 | 1800 x 400 x 93-113 | 25 + 30 x 40 D Section | 4-5-12-13 | 355 | 400 | 600 | 3420 |
Quality Tested
- VDE approved
- CE approved. Compliant with BS EN60335-1
- Splashproof – IP67 rated, suitable for bathroom zone 1
- Safety cut-out
- ASTMB117 anti-corrosive salt tested to 250 hrs
